Installations are always unique to you and venue or enviroment, there isnt normally a off the shelf package that suits all, so we will work with you to design the perfect system and future proof for aditions in the future. from a small audio streaming solution to networked zones, it can be a daunting process so from start to finish, we will guide you through each process and give training where needed.
Bellow are some Installtions, Maintenance and Manufacturing I have been involved in.

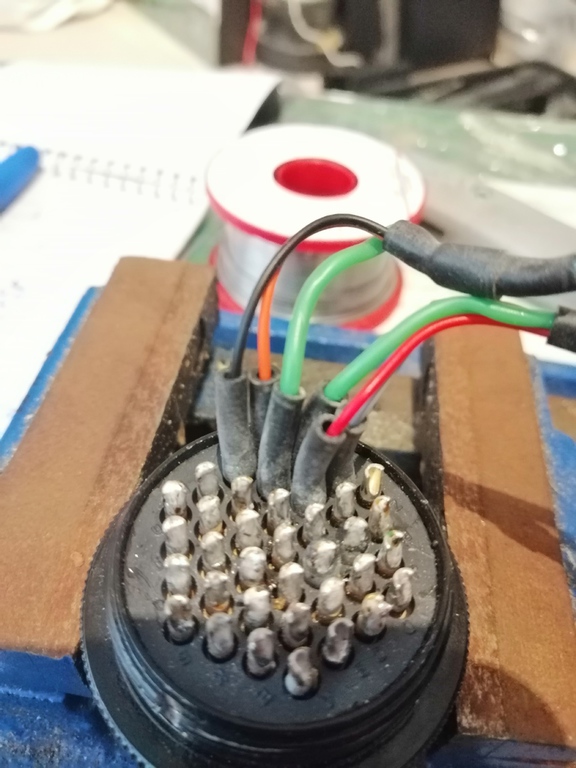

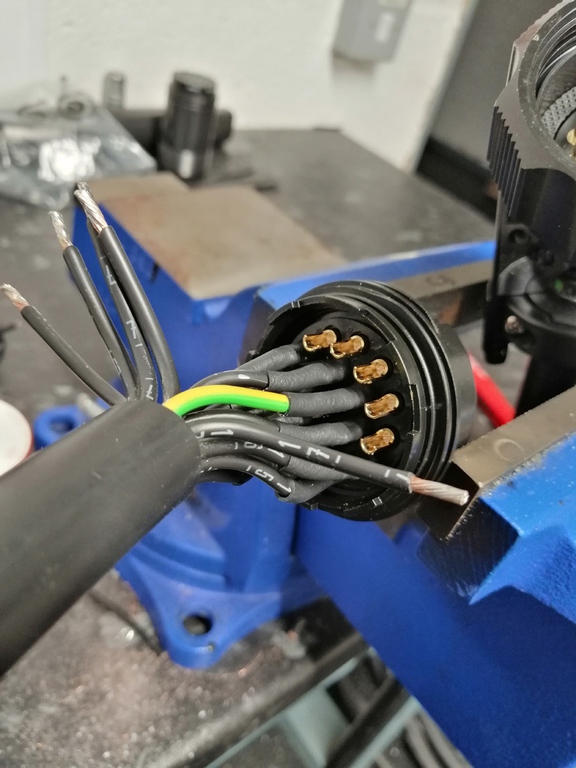

Veam Cable Rewire

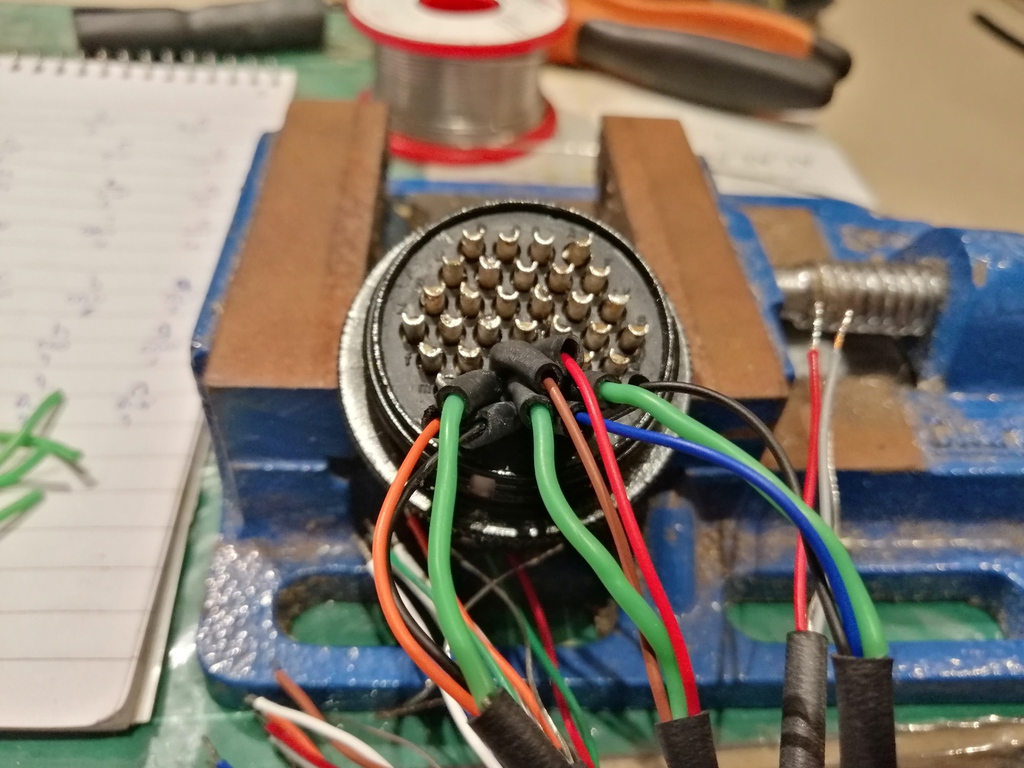

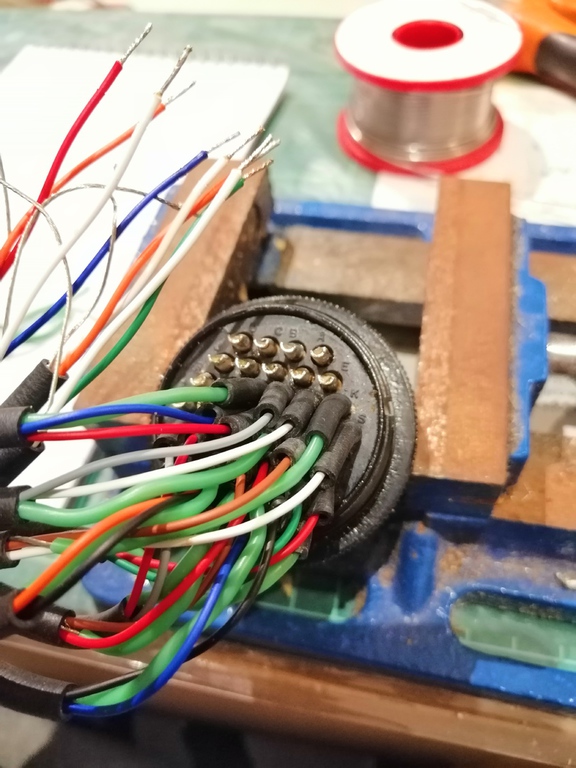

A local sound company had one of its veam audio multicores severed by scenery rolling too far, had to cut a couple of metres off and rewire the connector

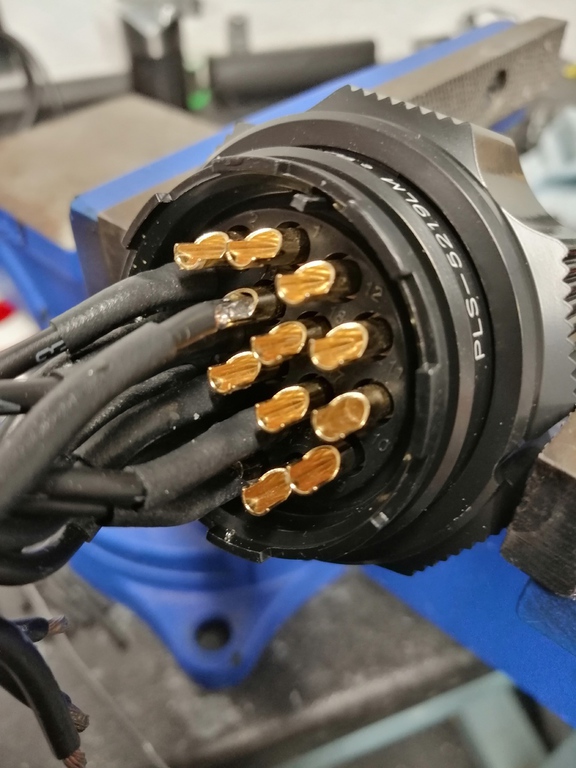

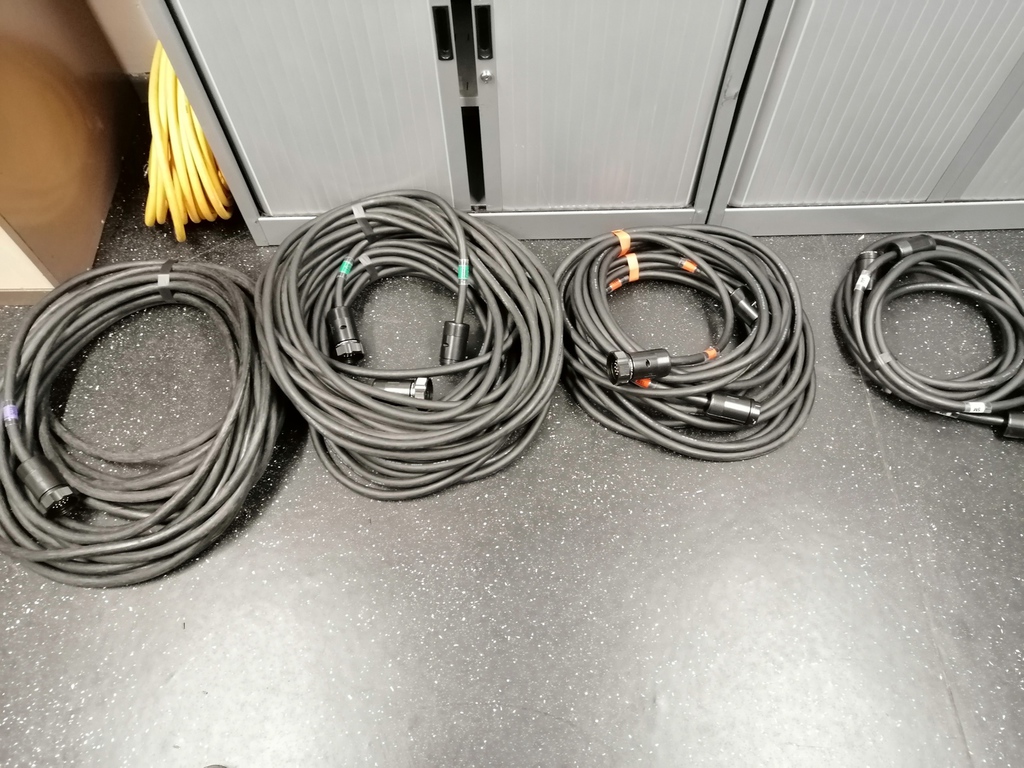

Socapex Cable Manufacturing

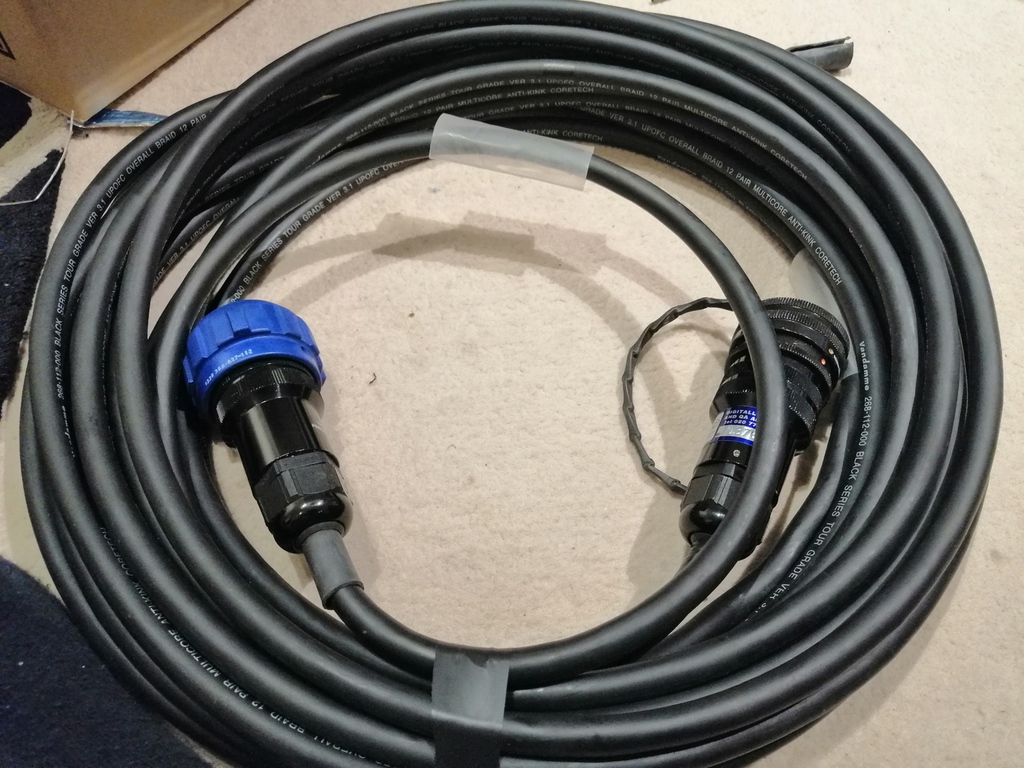

Leicester Haymarket Theatre were in need for lots of soca cables made up in various lengths each with size markings and owner identity on each

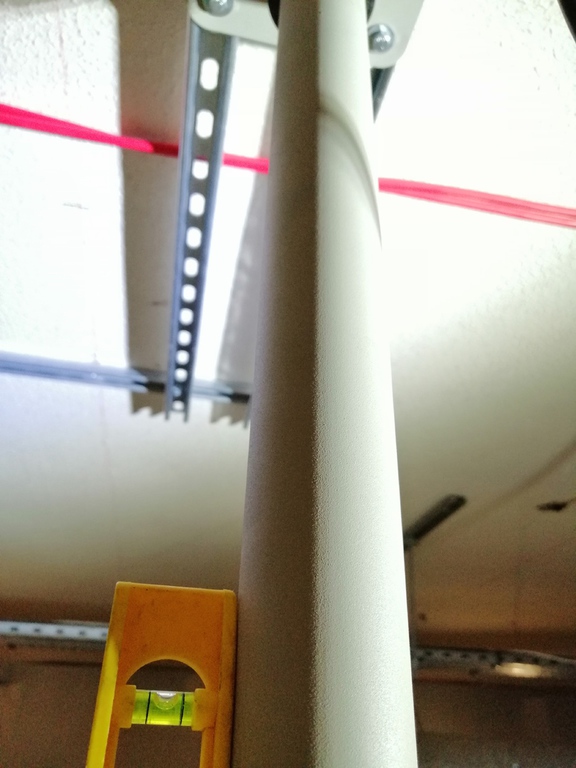

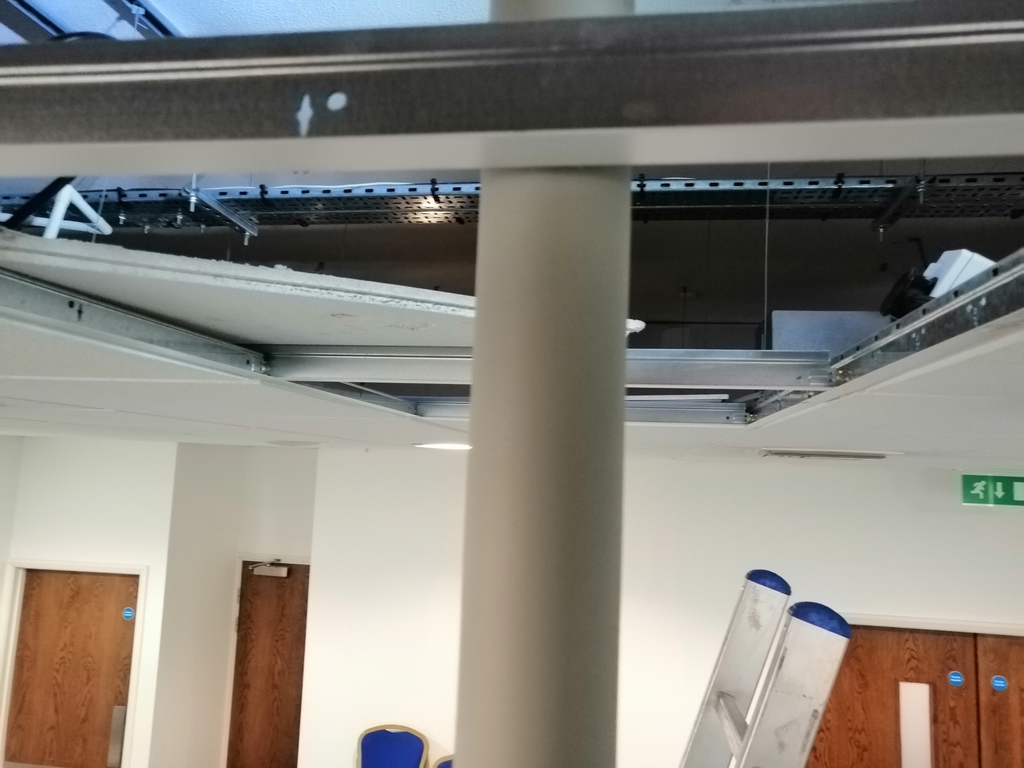

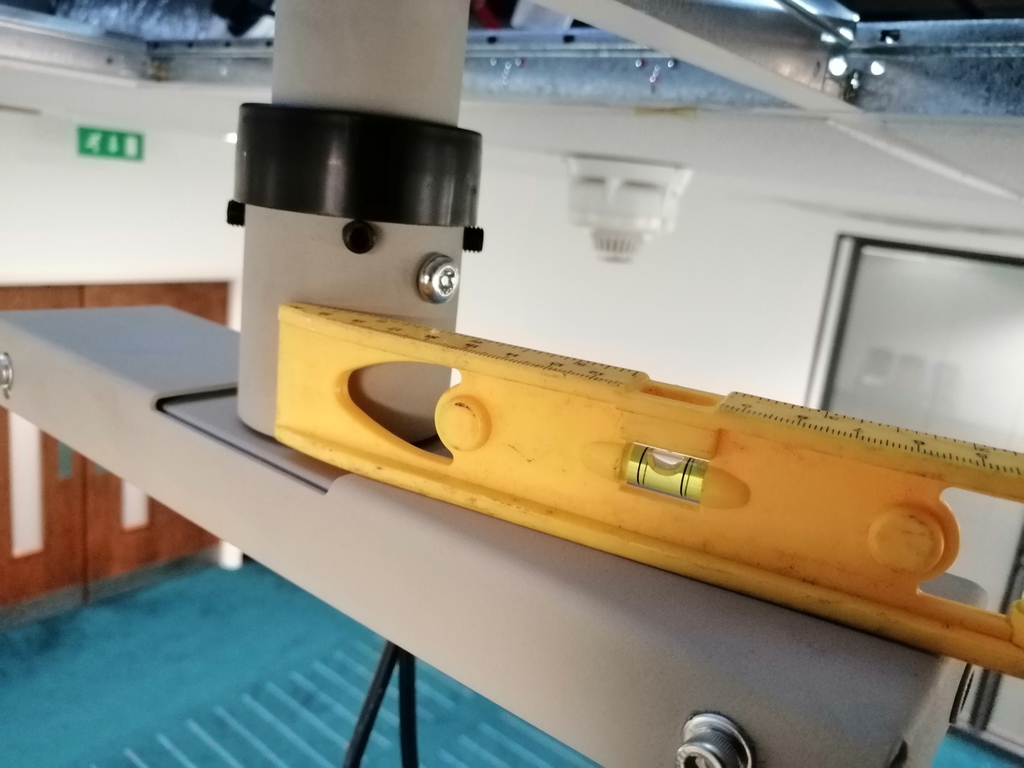

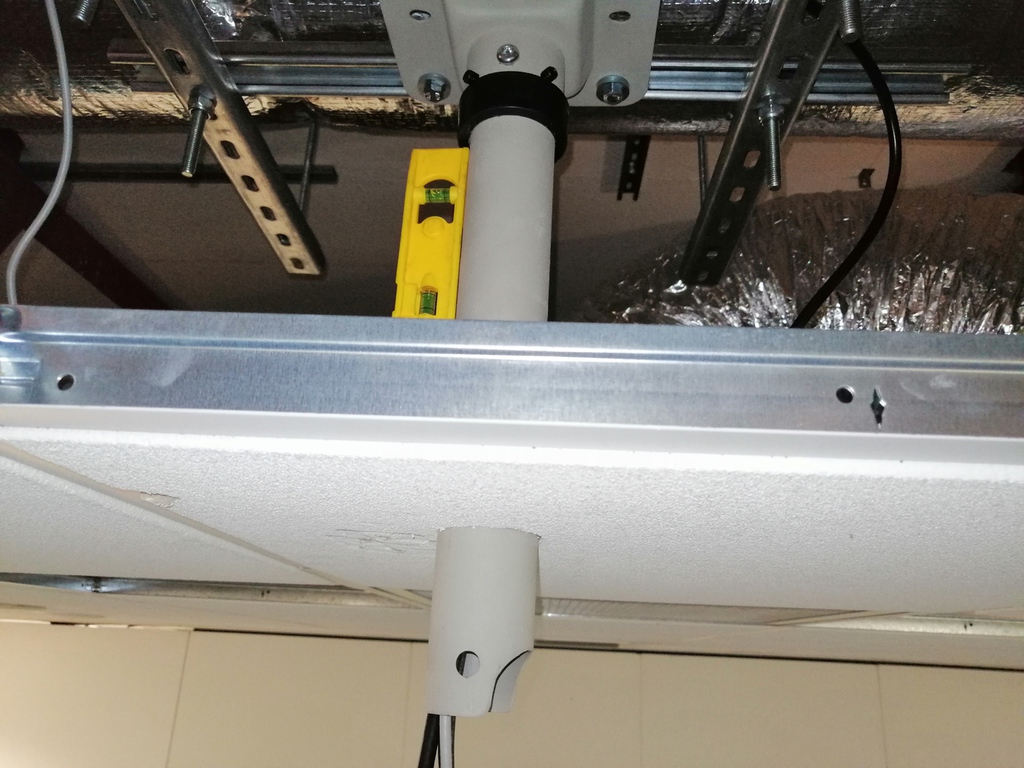

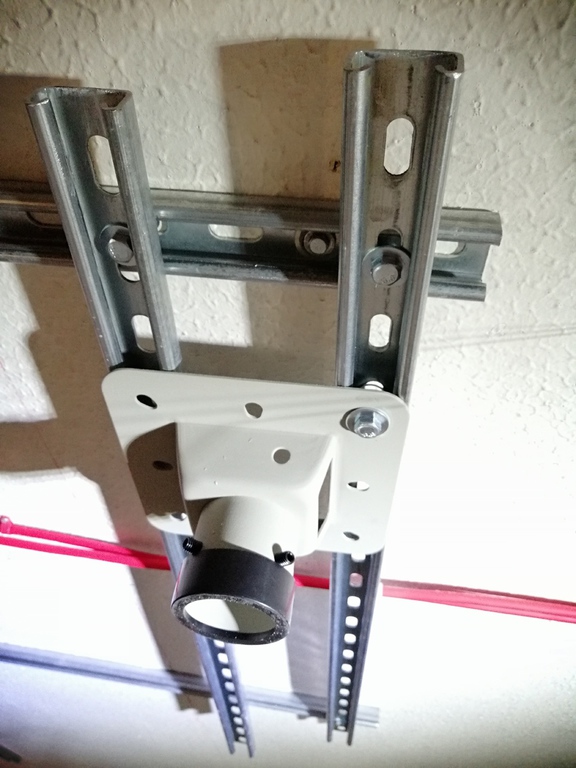

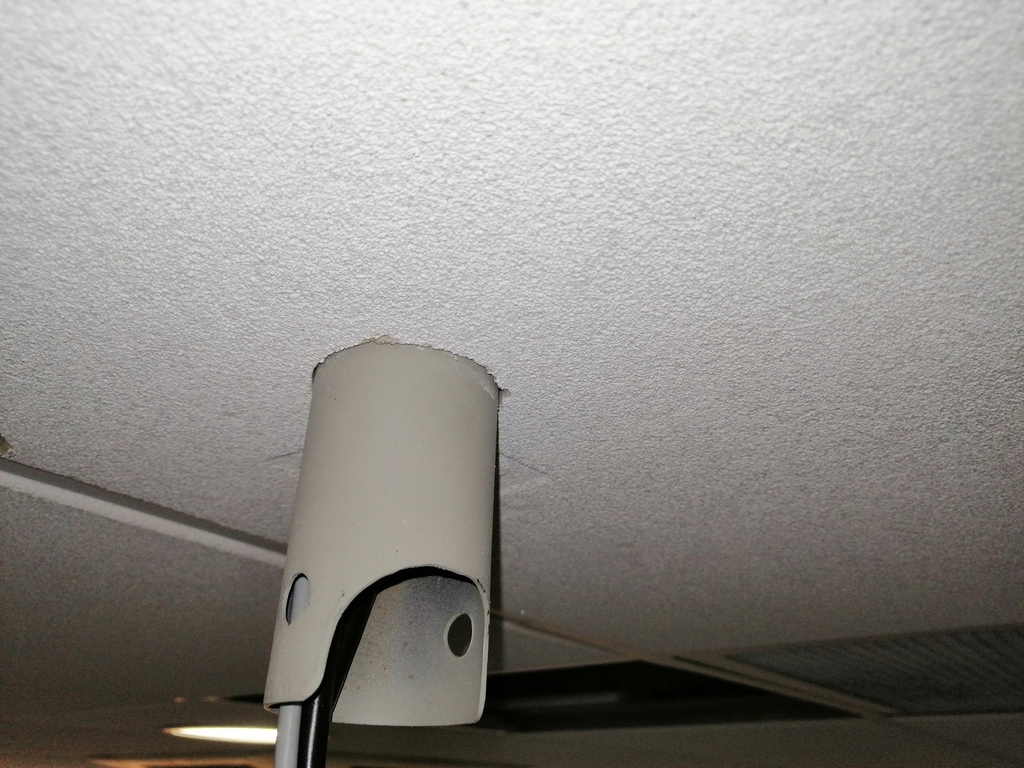

Conference Centre Projector Install

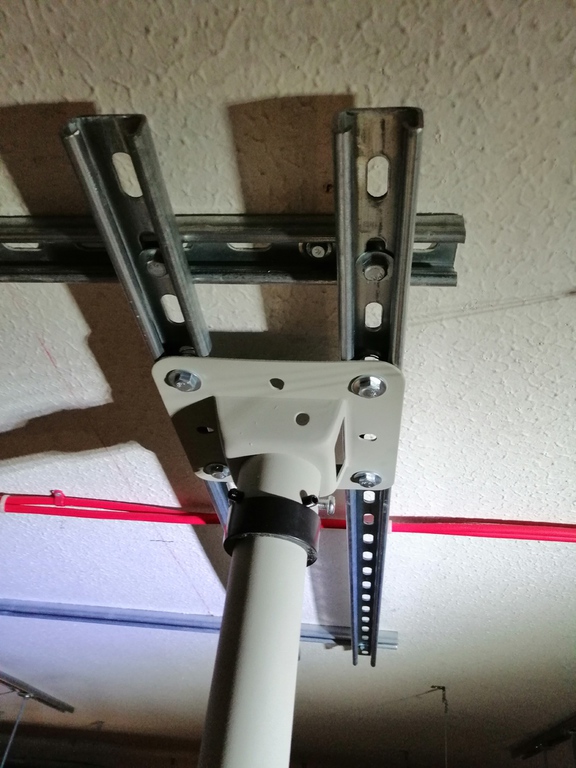

This project was on behalf of Concept Audio, we were brought in to help install 2 projectors for a conference centre, the old units previously installed by another comapny were mounted to the false ceiling which the image kept shaking if there was wind pressure changes in the room, we mounted to the main ceiling above the false ceiling using unistrut, no movement in the image now

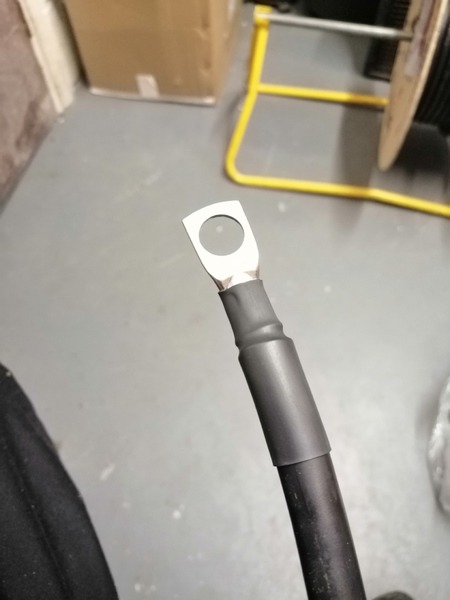

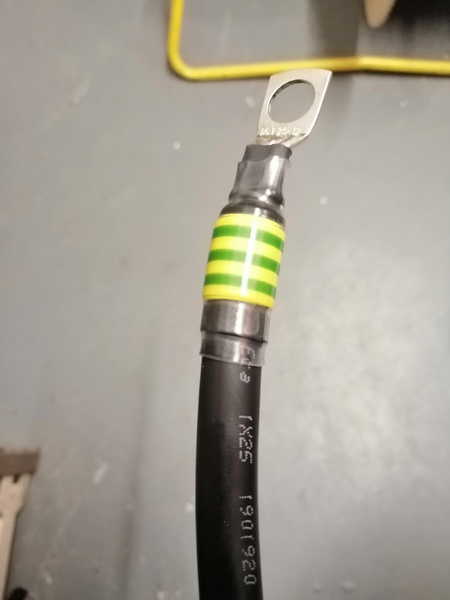

Custom Cable Manufacturing

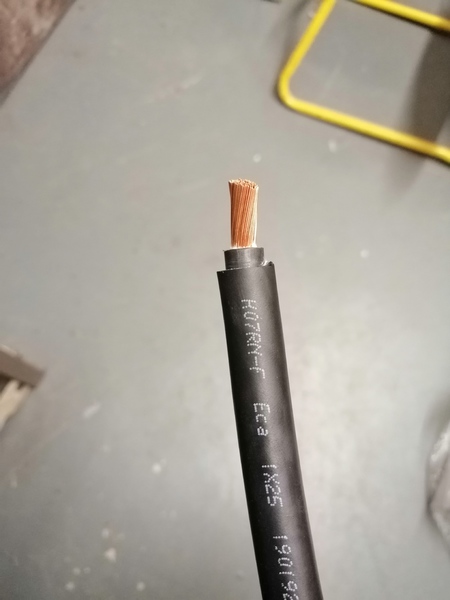

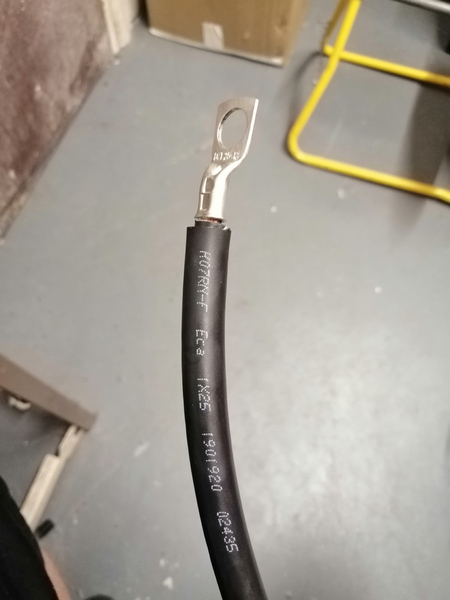

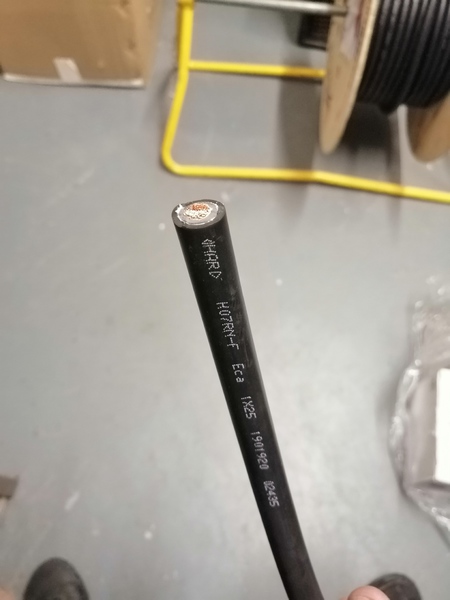

one of my long term customers needed 20 earth bonding cables made up for BS7909 site compliance, these were made with 25mm H07R-NF cable

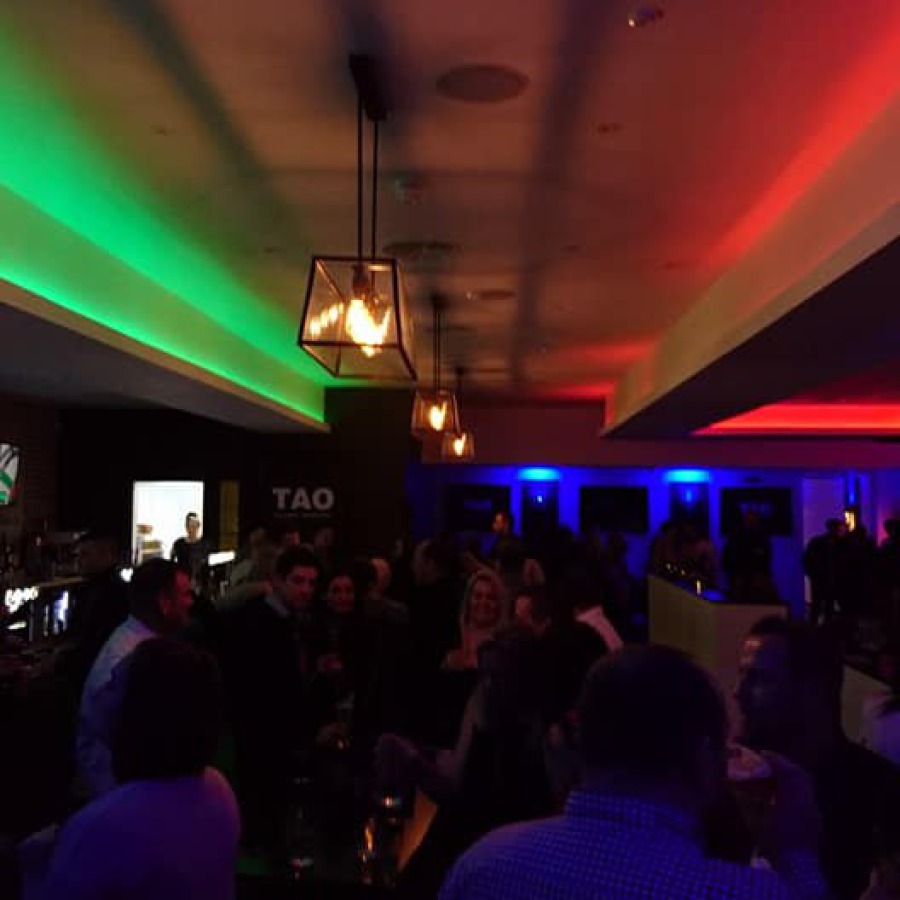

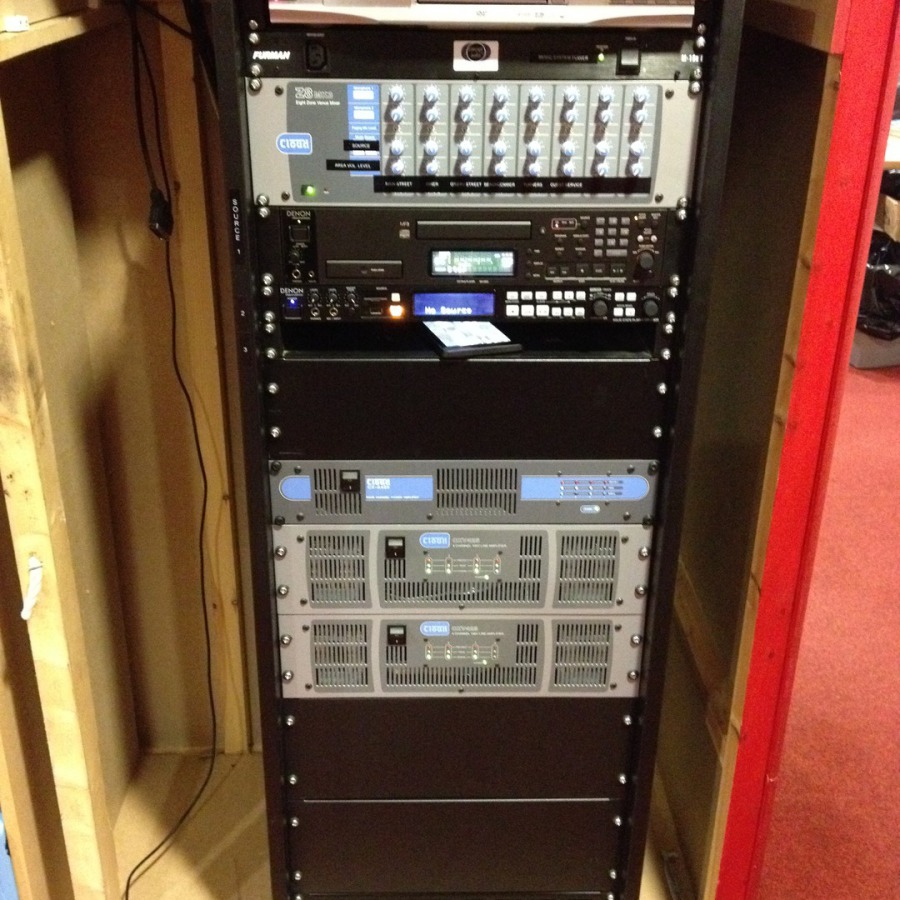

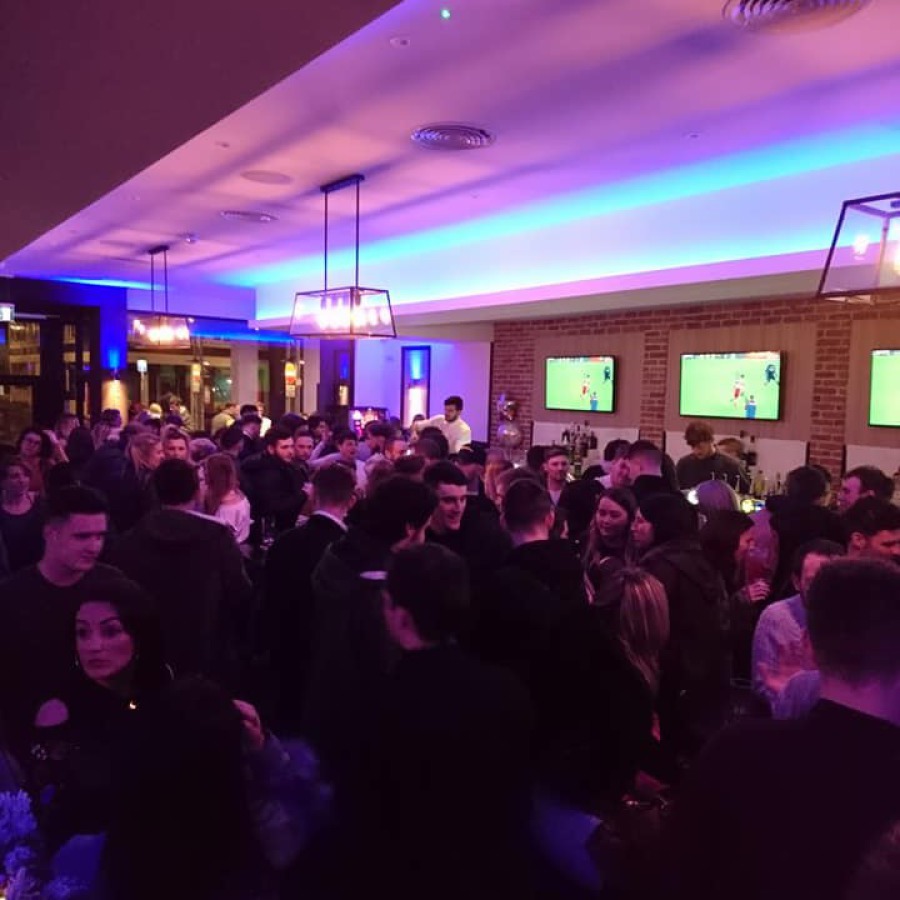

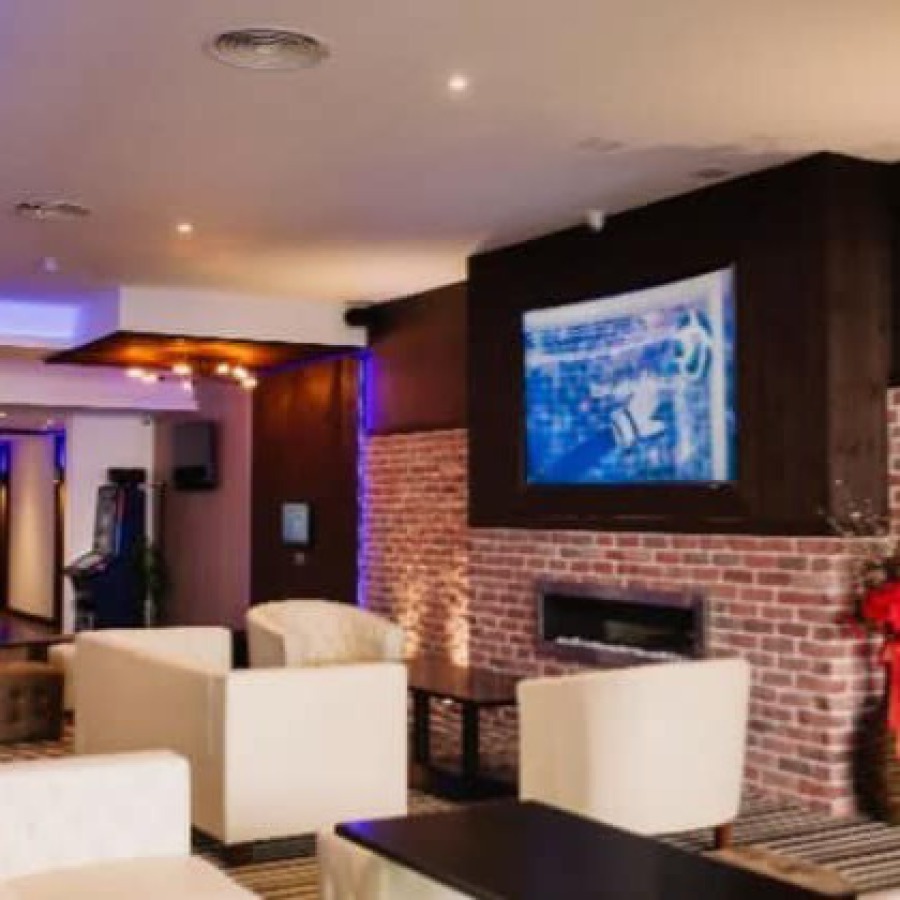

Installation of 4 JBL 26CT Ceiling Speakers in the main Bar area, 4 x EV EVID 3.2 in the TV Lounge, 10 x
4” Ceiling Speakers in Corridors and Toilets & 2 x 6.5” Marine outdoor Speakers in the
Smoking Areas all zones controlled with Cloud Z8 control and Cloud CXV Amplifiers.

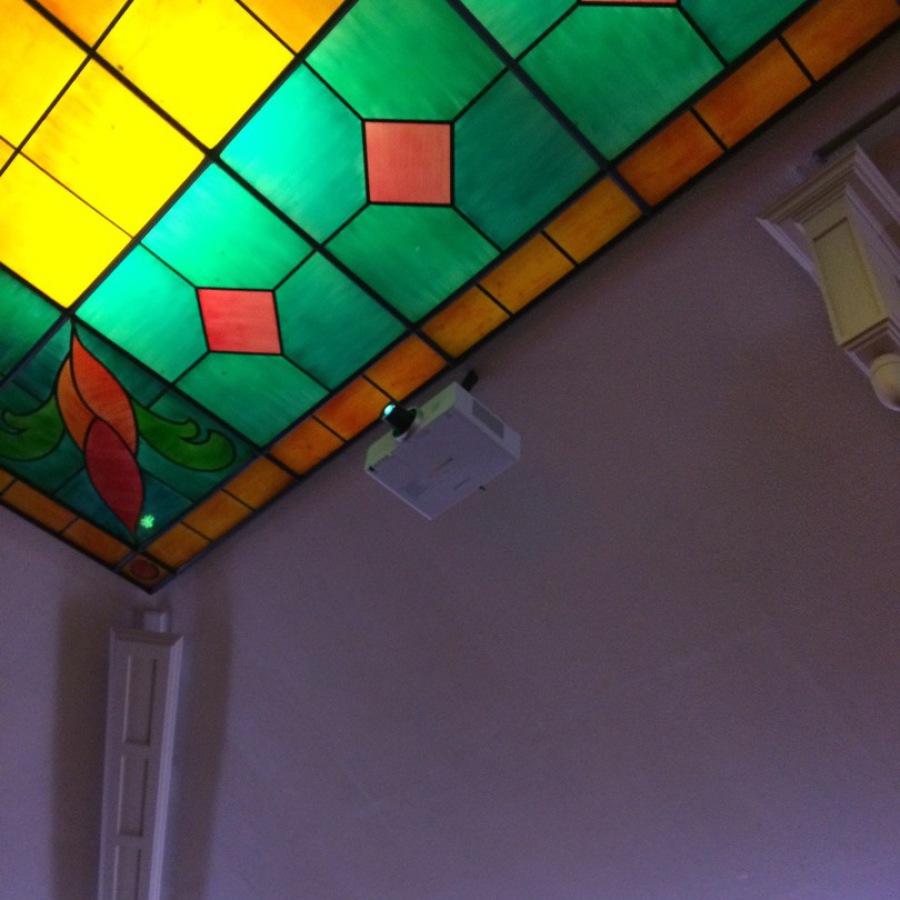

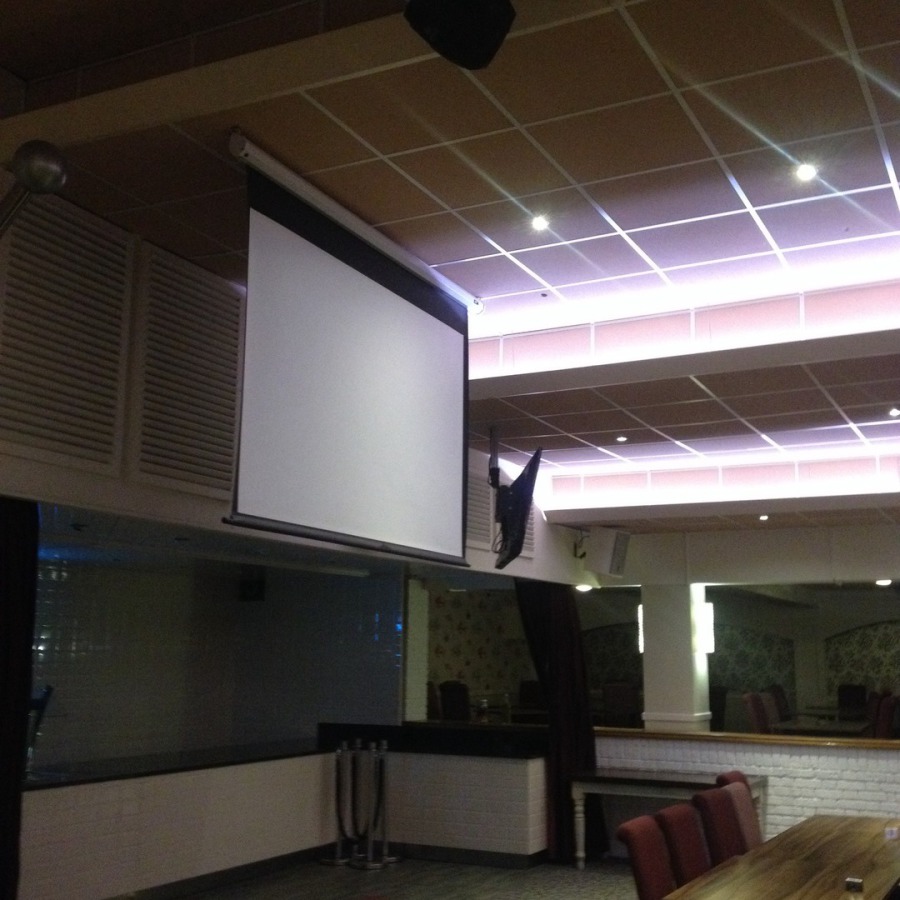

Installation across 13 sites of 2 x 16:10 Motorised Screens, 2 x Panasonic 5k 1920 x 1200
Native Projectors, Kramer VP-725 Scaler/Switcher, VM-114H4C HDMI – 4 x DGKat Distribution Amplifier,
Screened Cat6 Cables, PT-572+ DGKat – HDMI Receivers.

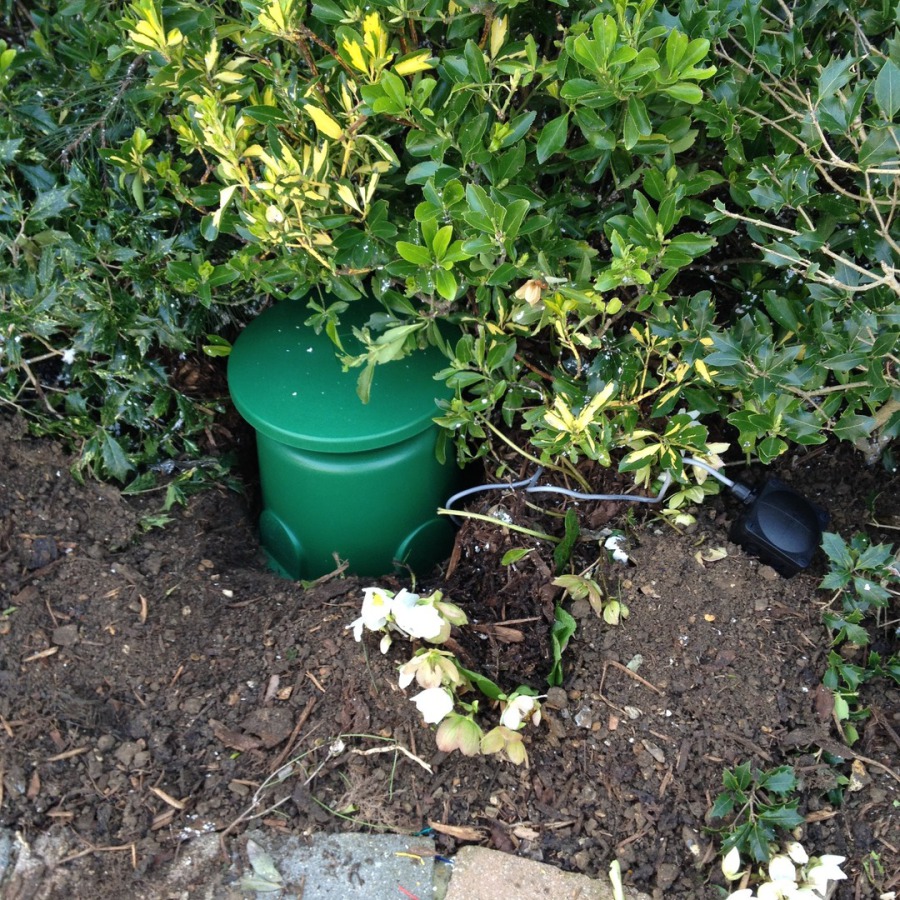

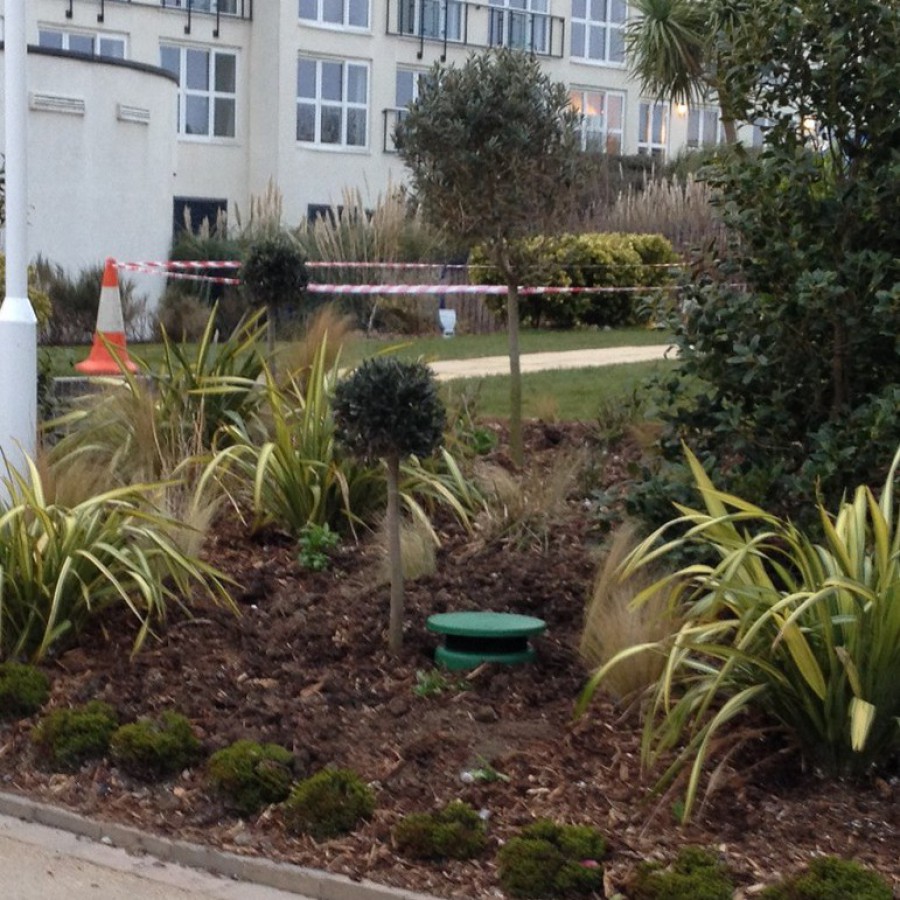

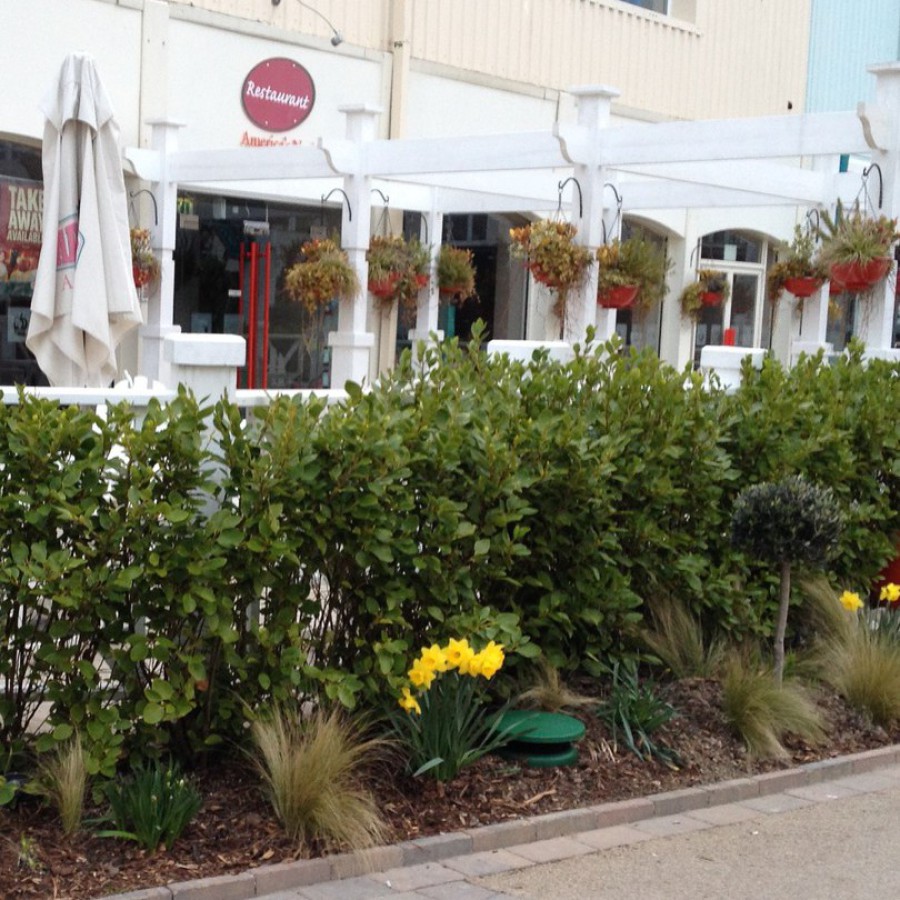

Installation of 54 Outdoor Atmosphere setting Speakers Buried within the main areas & Streets split
Into 8 Zones with a Cloud Z8 and CXV Amplifiers with 6 input choices allowing zones to have its own theme or
With butlins adult only breaks the Entire system will have the same theming music suiting the weekend.

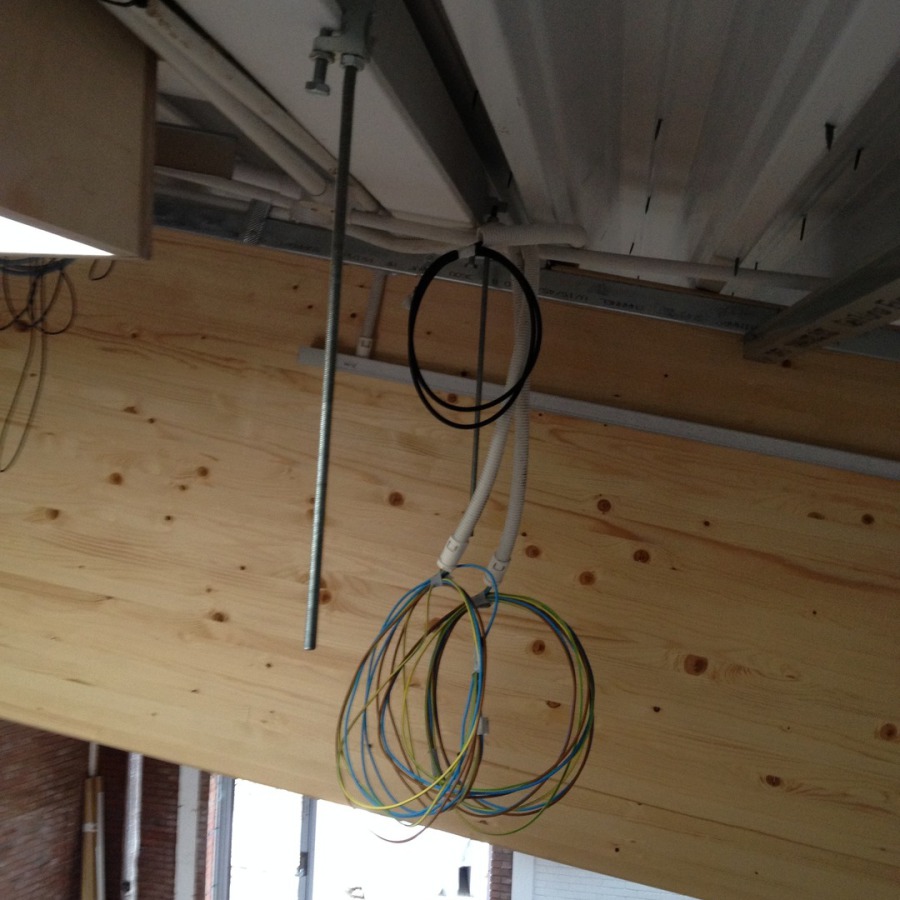

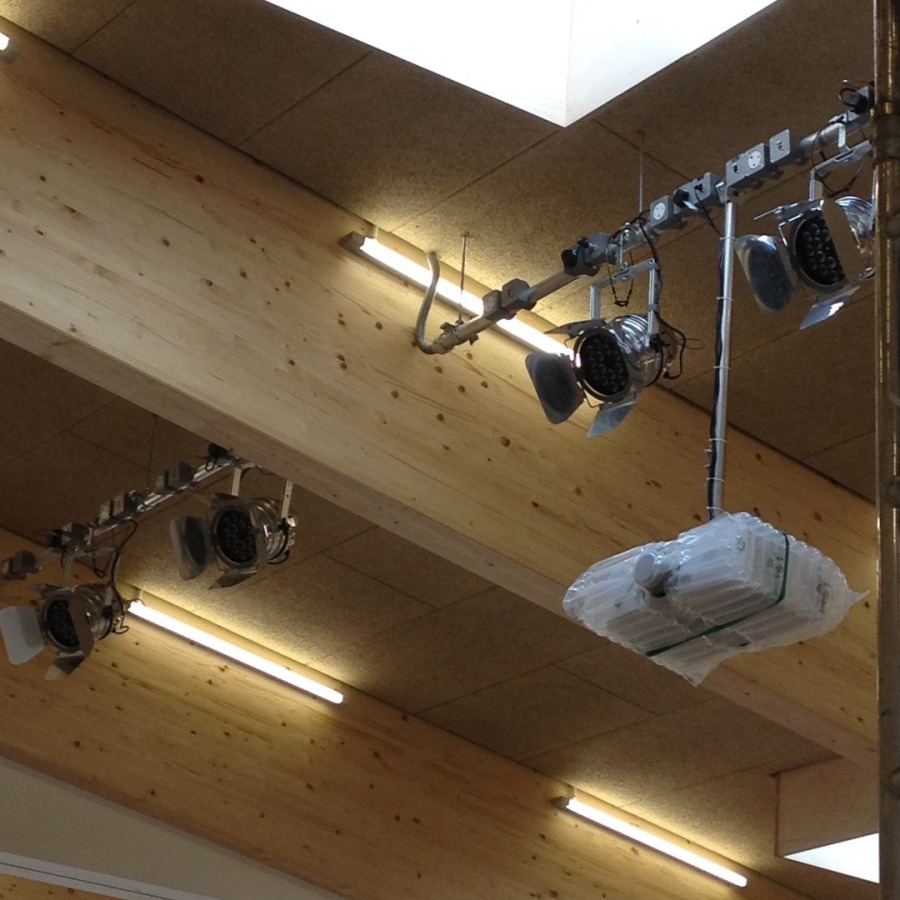

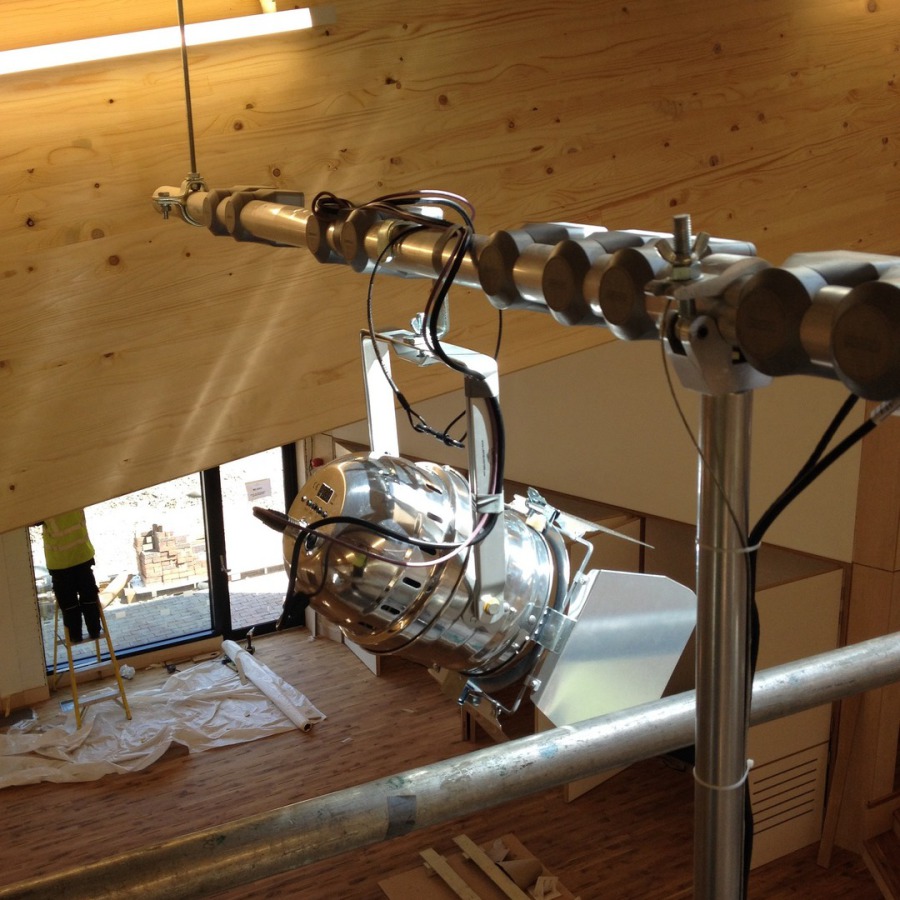

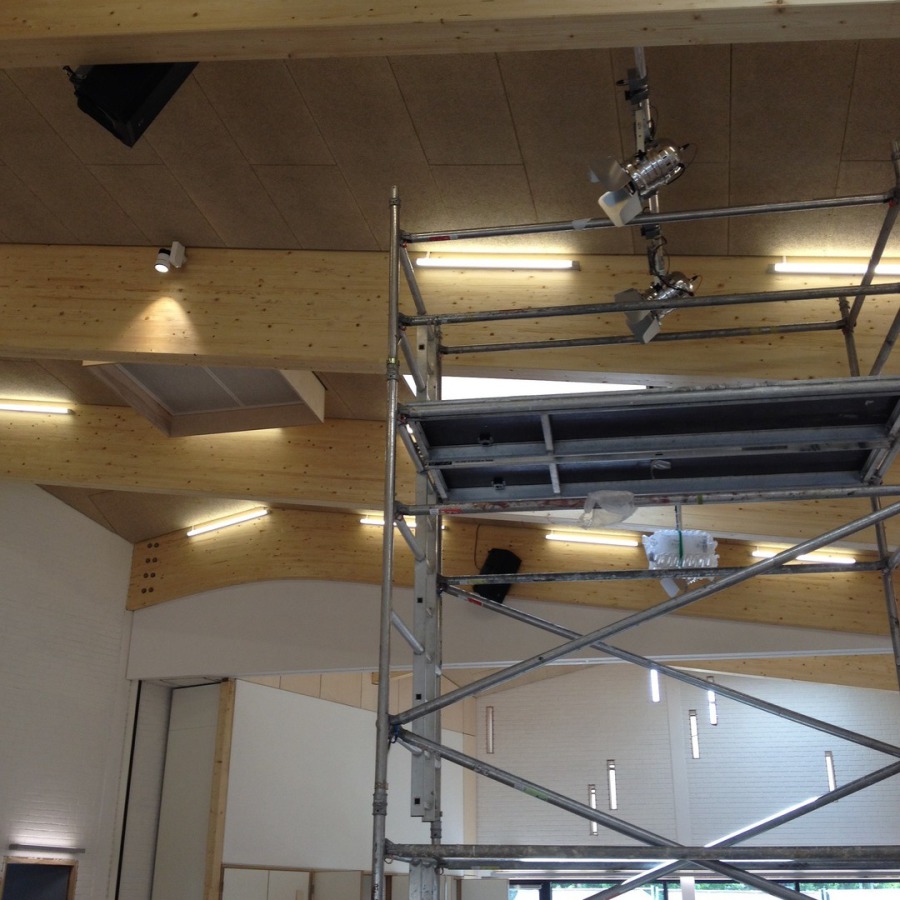

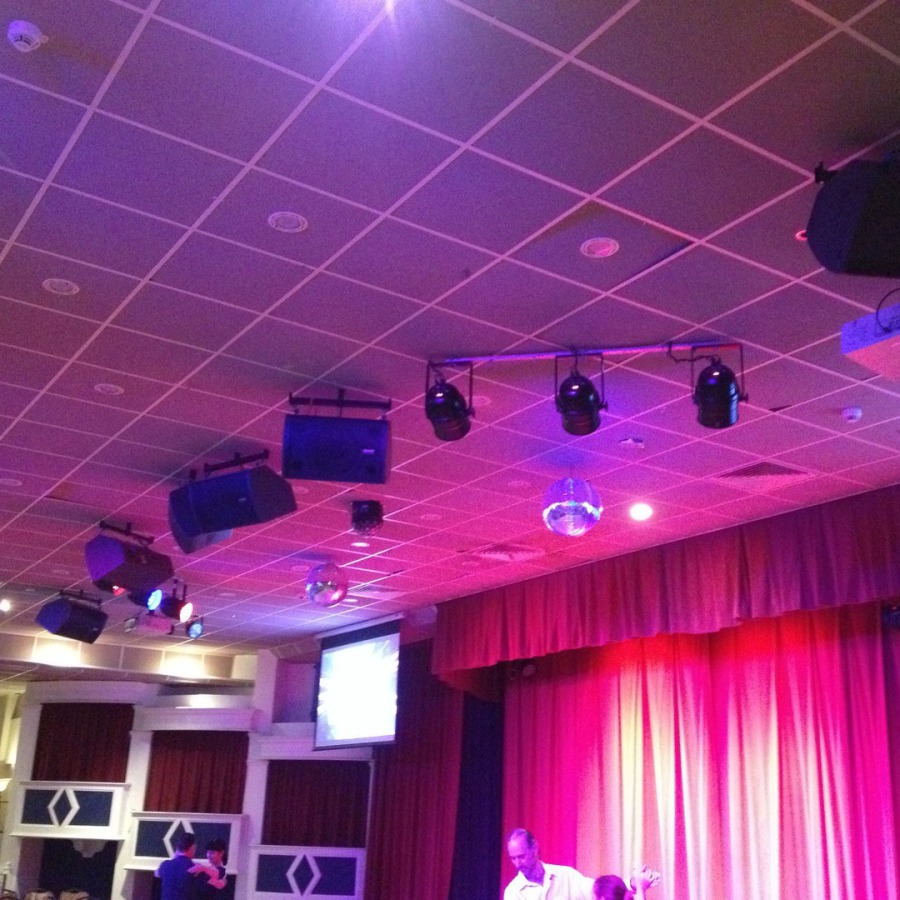

A new Build for Emsworth and we Installed 3 lighting bars with 8 x LED Par Cans, within a cupboard by the stage area a Patch panel was installed along with a Zero 88 6 way Dimmer and a laptop with dmx dongle and software was also programmed for easy use for all that want to use the in house system

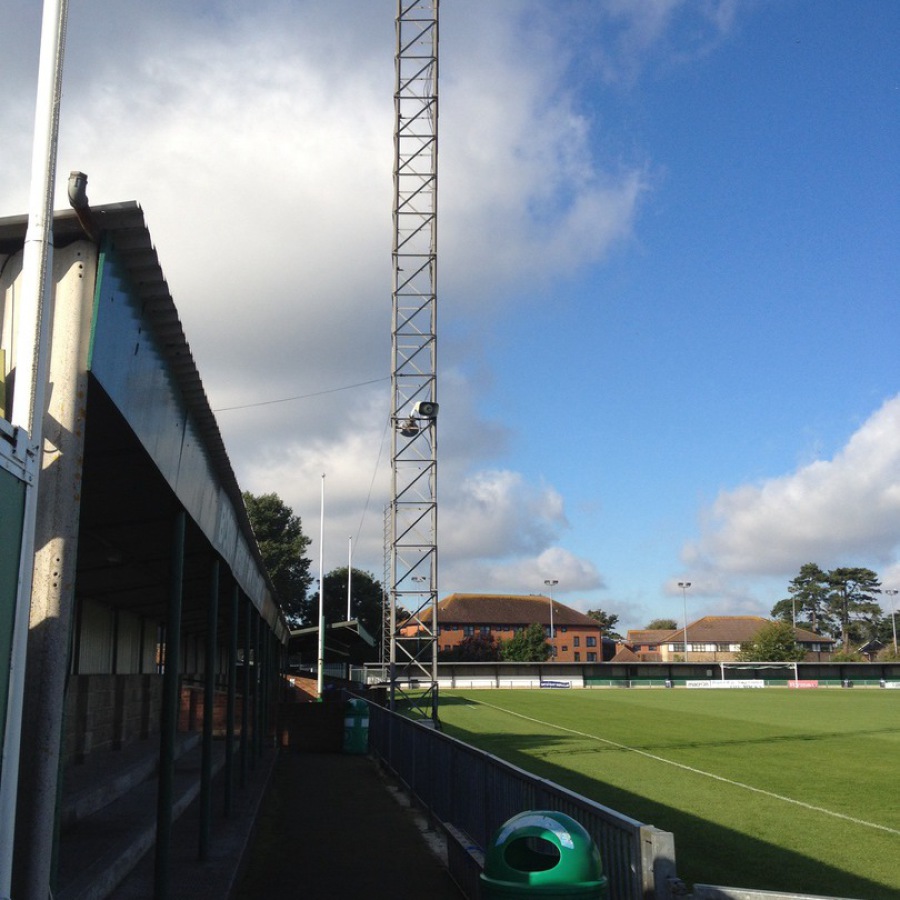

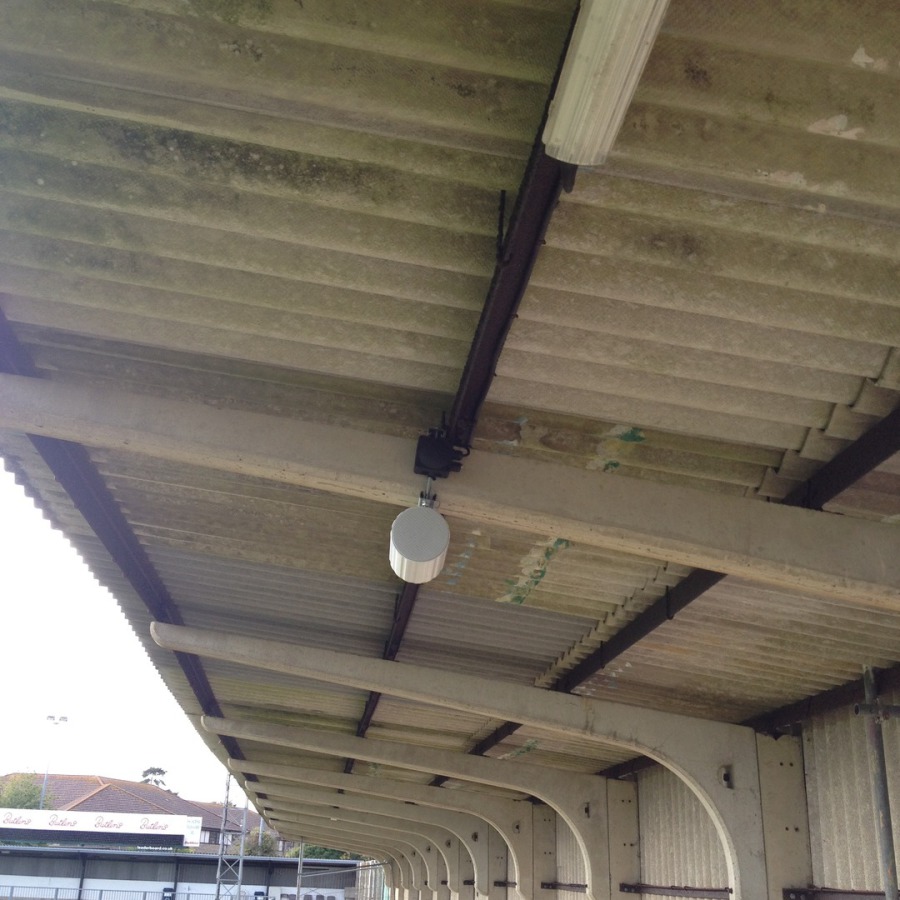

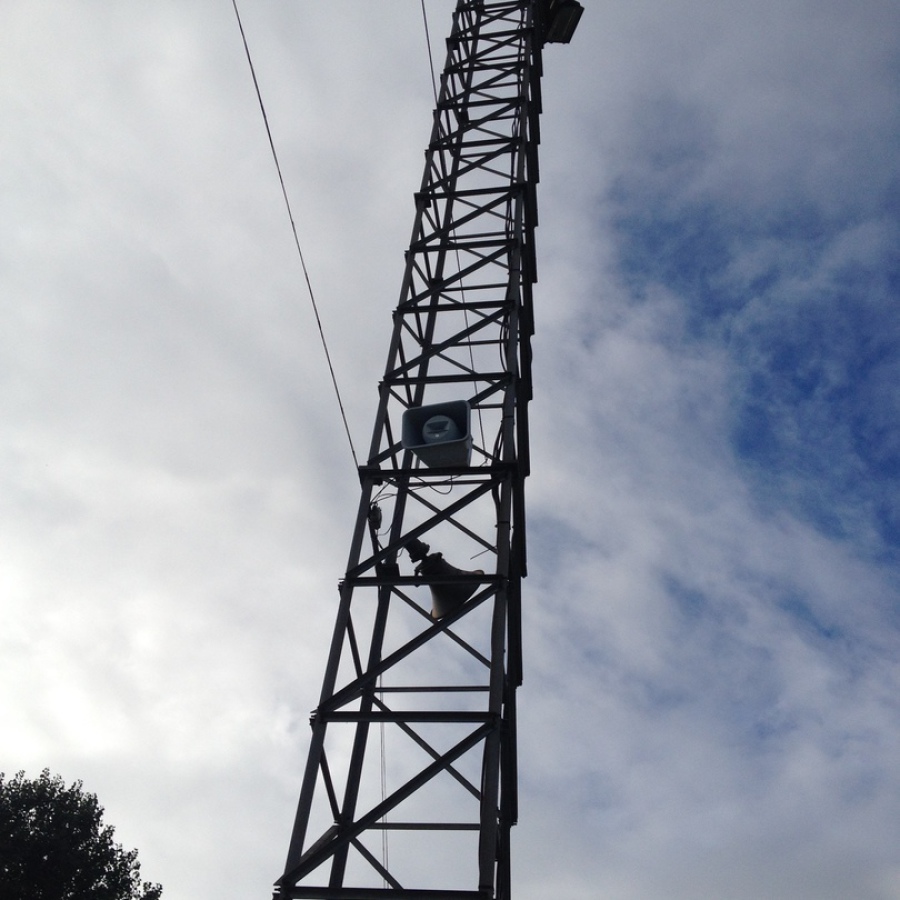

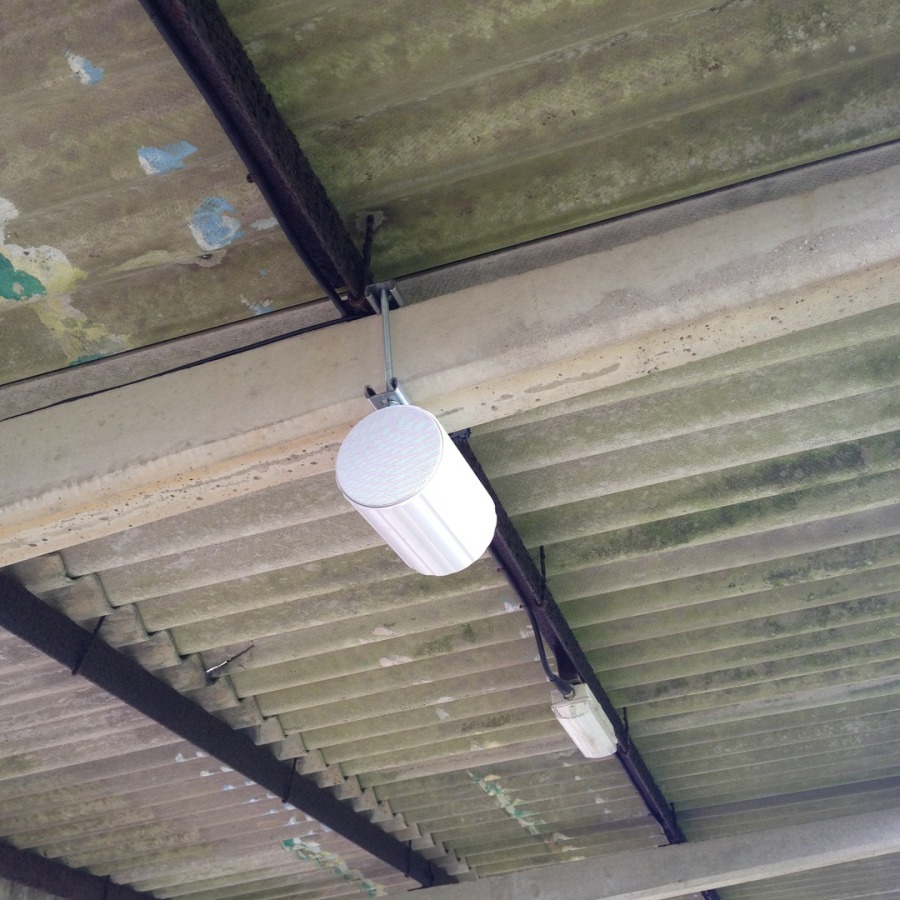

Upgraded outdoor PA speakers from TOA 5w 100v line to Penton MSH30/T for better clarity and Music ability, A Penton CELL10BT/EN was added midway on the west Stand to fill a void, I integrated the outdoor PA system with the Clubhouse system dropping the 100v Line signal down to a balanced Line Level using a Clever Little Box LCU-1A, 2018 should see the final 4 horn loudspeakers upgraded once budget allows

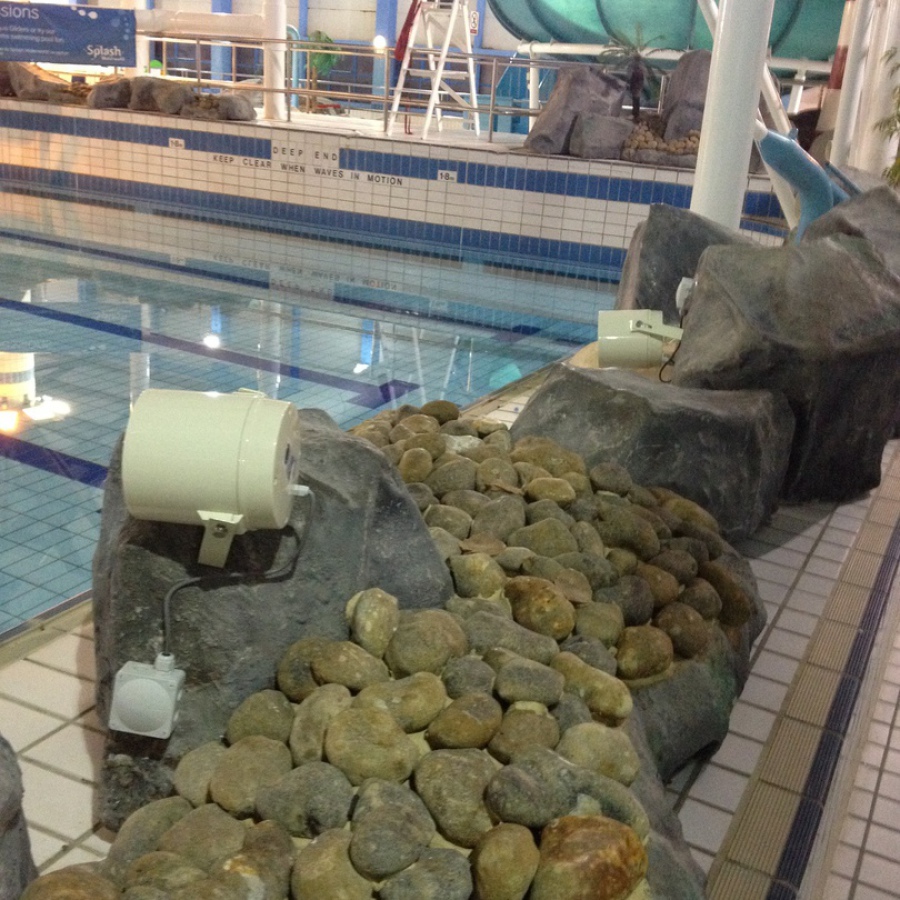

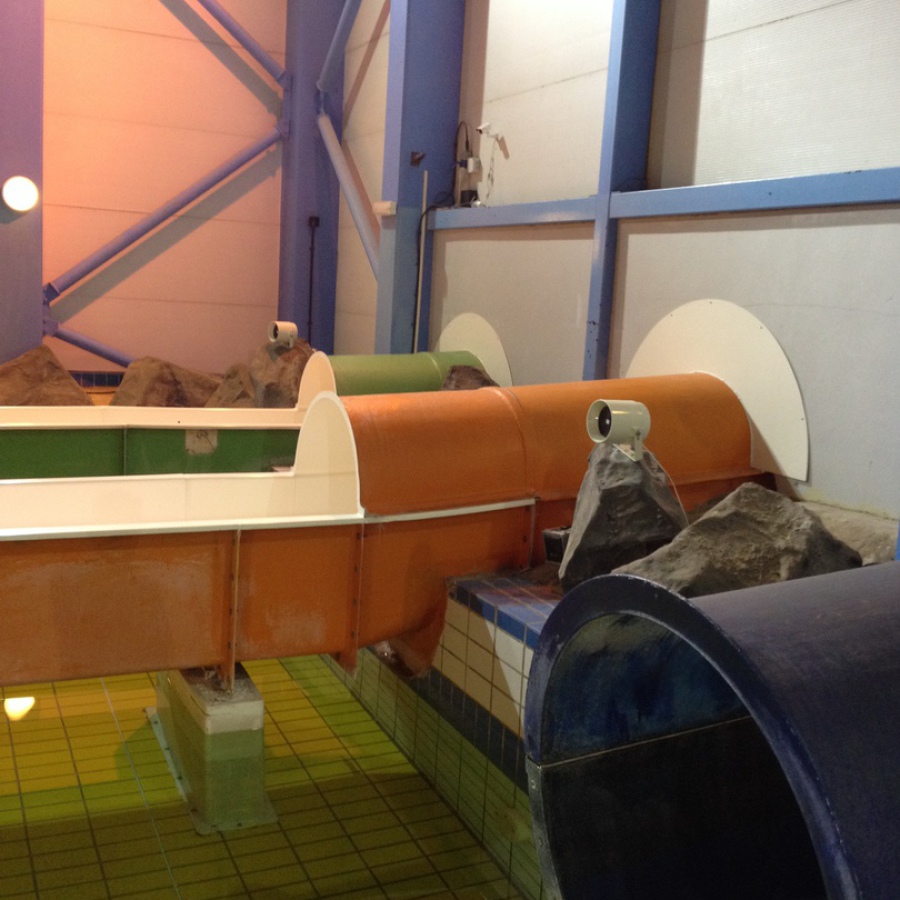

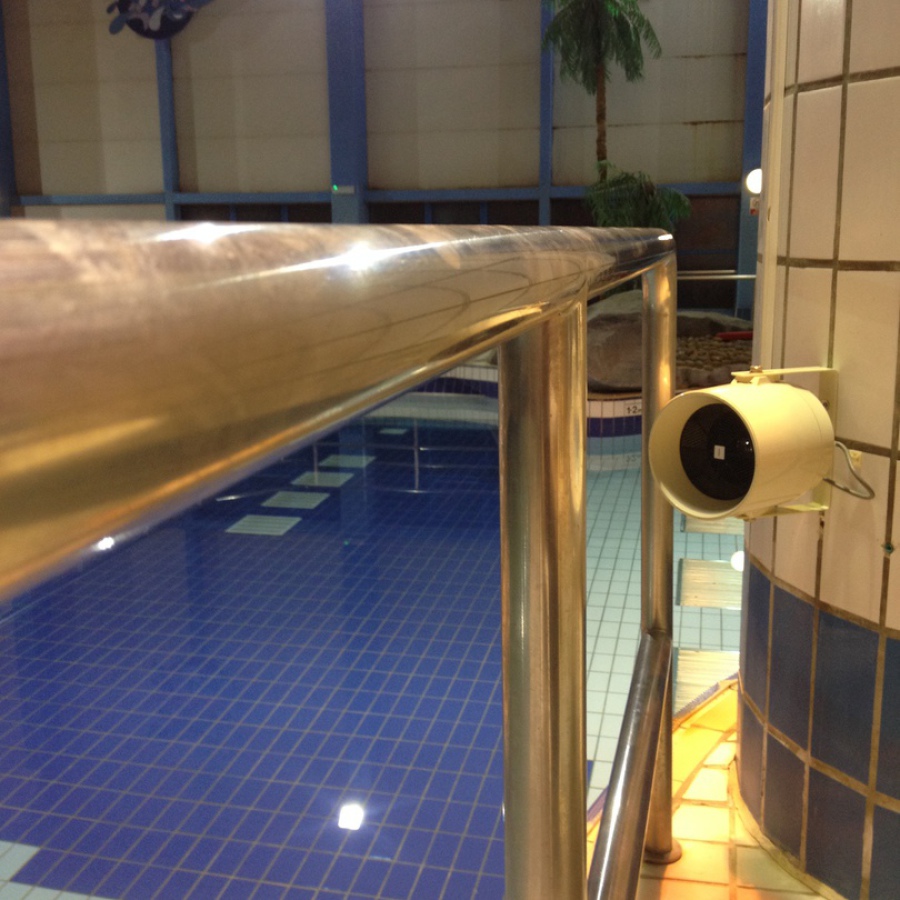

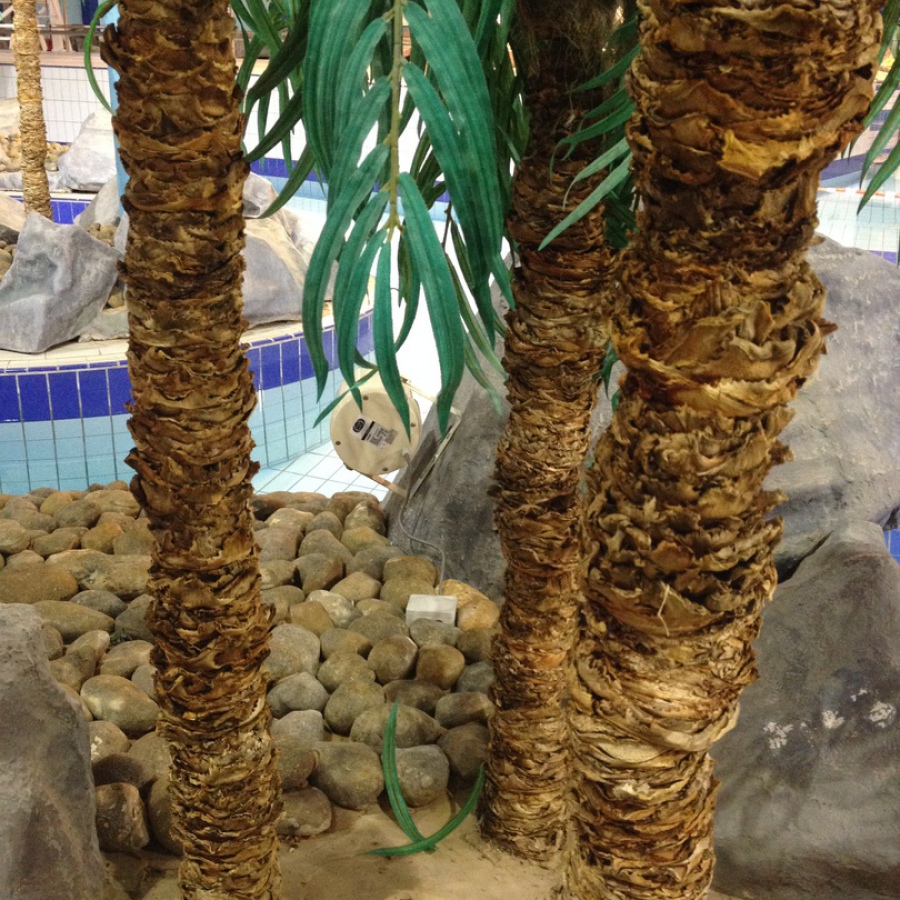

Installation of 28 Proel Water resistant IP55 Speakers around the Humid Pool Area
Controlled by Cloud CX462 with Paging Microphone, Pre Recorded Announcements with custom trigger
Panel.
